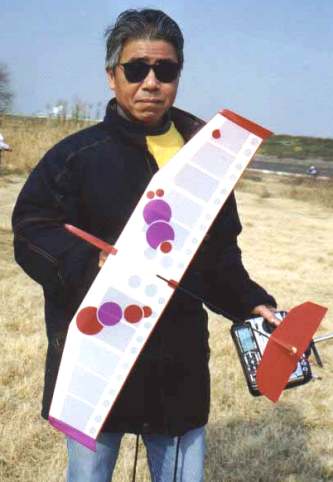

Woody Bee
|
|
|
| Span: 750mm /or 29.5in Root Chord: 160mm /or 6.25in Tip Chord: 110mm /or 4.75in Wing Area: 0.11m /or 175sqin Dihedral: Flat center section with tips raised 30mm /or 1.2in (20 degrees) Airfoil: S4083 [80% of original airfoil; i.e. no modification] Wing: Rib/built up; fixed to fuselage; Horner tips (created by cover/shrink) Wing Covering: opaque Ora lite Tail: Stab/Rudder--pull-pull |
Fuselage Length: 565mm /or 22.25in Fuselage Type: filmed balsa pod & carbon boom Fuselage weight (empty): unkn Distance, LE wing to LE stab: 370mm /or 14.6in Weight Empty: 45g Radio: Futaba FF-8 Weight with CS21 or HS50's, Rx, Battery: 80g Recommended Battery Size(weight): 50MHz Recommended Rx Size(type): REX (Check) Number of servos(type): 2 PICO Other Photos: Click Here |
| Designer: OZONO san Availability: N/A Suggested Price: N/A Contact person: Paul Clark, in Japan E-mail address: Sky Pilot <pclark@osk3.3web.ne.jp> |
|
