Tralla-là FG/SC
Two Wing cover versions: FG = Fiberglass / SC = scotch tape
|
|
|

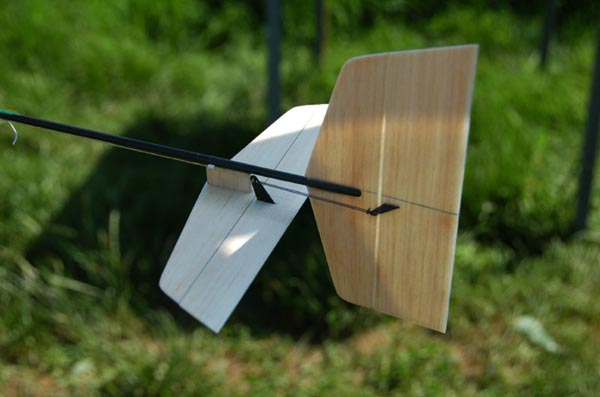

| Span: 800mm /or in Root Chord: 190mm /or in Tip Chord: 110mm /or in Wing Area: 12 sdmm /or sqin Dihedral: 10 degrees each side (20 degrees total) Airfoil: Ag04 [1 degree washout at tip] Wing: Yellow Foam Wing Covering: FG version vac bagged with 25 gsm fiberglass; SC version: clear scotch tape Tail: Stab/Rudder Tail Area: Stab 0,88 sdm; Rudder: 1 sdm |

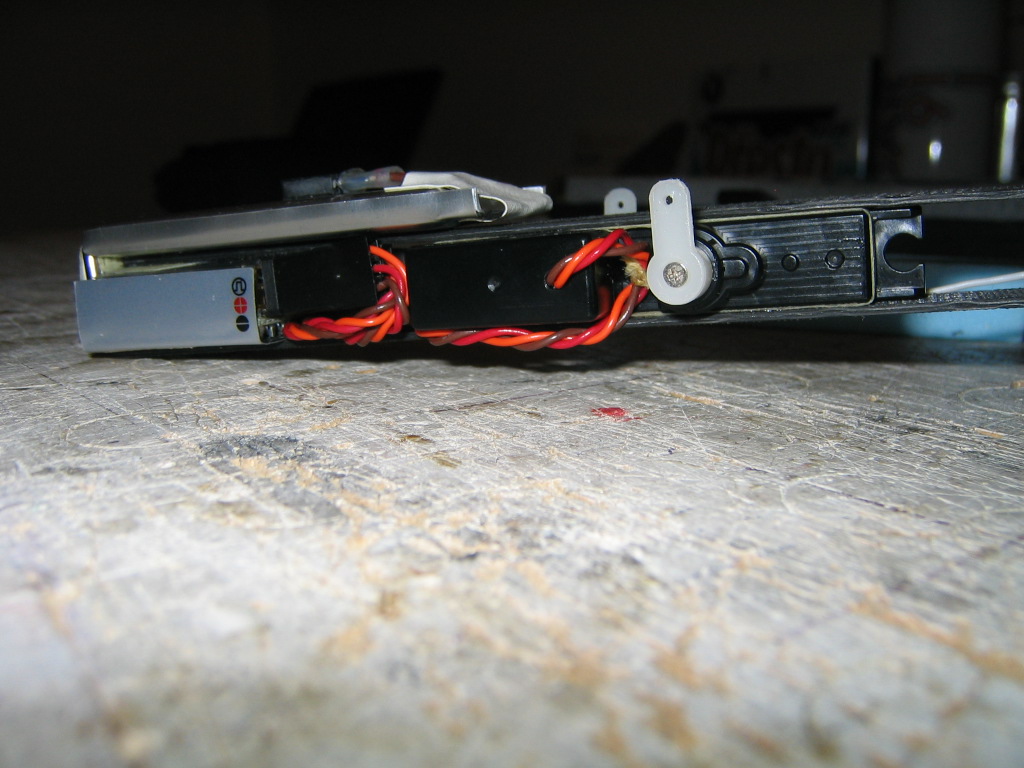

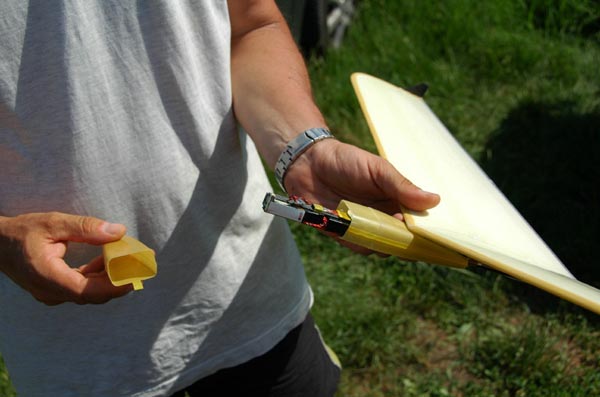

Fuselage Length: 730-740 mm depending on Pod type /or in Fuselage Type: Kevlar fairing with carbon boom; CF tube+CF strips+ heat shrink Fuselage weight (empty): 28 g Distance, LE wing to LE stab: 450mm /or in Weight Empty: 77 g Radio: Futaba FF9 Weight with C141s, Rx, Battery: 110 g Recommended Battery Size(weight): 1 lipocell 450 mAh 11g (or smaller) (important 20 mm max width Recommended Rx Size(type): GWSR6NIIH 9 g (or similiar) Number of servos(type): 2 Graupner C141 6,5g each (5 g types are OK) |
| Designer: Sgarbossa "Ago" Agostino Availability: N/A Suggested Price: N/A Contact person: Sgarbossa "Ago" Agostino in Italy E-mail address: agoxago@tiscali.it Last Updated: 2008-01-04 |
|
