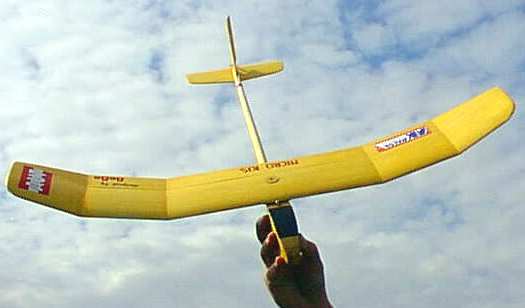

KIS

KIS (Keep It Simple) Dimensions: 1 mm (millimeter) = 0.039 inches, 1 g (gram)= 0.035 ounces, 1 sq. dm =15.5 sq. inches Span: 750 mm Root Chord: 120 mm Tip Chord: 90 mm Wing Area: 7.9 sq. dm Dihedral: Polyhedral 4-fold Airfoil: Jedelsky modified Wing construction: solid Balsa (preshaped stock material) Wing covering: 2 x dope Wing weight: 40 g Tail: conventional, Balsa 2 mm	Fuselage Length: 620 mm Fuselage Type: Pod: 0.8 mm ply, Boom: solid Balsa Fuselage weight: w/o equipment 50 g Distance,LE wing to LE stab: 450 mm Weight Empty: 90 g Radio: TX Futaba Attack 2 Channel AM RX Futaba 2 Ch AM, caseless 15 g Servos: 2 PICO (various brands) 9 g each Battery: 4 x Sanyo 110 mAh, 30 g Weight airborne: 150 g
Price: kitting under investigation Contact: Werner Stark, Austria, e-mail: wstark@ibm.net
Werner has been very kind to permit the listing of building instructions and plans for his designs KIS and BoBo. They are provided here as a self-extracting zip file, or as individual PDF files. We hope you find them useful. PDF files: Wing; Stab; Fuselage; Assembly; Building; Parts; Materials Zip File: KIS Zip File
