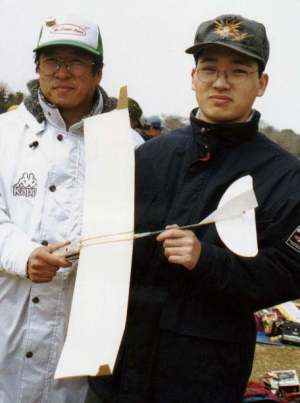

HL-1 Illusion
|
|
|
| Span: 750mm Root Chord: 125mm Tip Chord: 125mm Wing Area: 93750sqmm Dihedral: Poly--raised 35mm at first break; 30mm from 2nd break to tip Airfoil: Modified S4083 Wing construction: balsa sheeted foam Wing Covering: film Tail Area: Stab span 250mm, chord 80mm |
Fuselage Length: 530mm Fuselage Type: GF pod & boom Fuselage weight (empty): Distance, LE wing to LE stab. 320mm Weight Empty: Radio: GWS PICO 5.8g, 2 GWS @ 6g Weight with servos, Rx, Battery: 95g Recommended Battery Size(weight): 4 50cells Recommended Rx Size(type): GWS PICO 5.8g Number of servos(type): 2 GWS @ 6g |
| Designer: Shuhei Okamoto Availability: Contact: Craft Room Suggested Price: Y15,800 or $150.00 Contact person: Paul Clark, in Japan E-mail address: Sky Pilot <pclark@osk3.3web.ne.jp> Craft Room Homepage: http://www.page.sannet.ne.jp/craftrm Shuhei Okamoto's e-mail address: craftrm@sannet.ne.jp |
|
