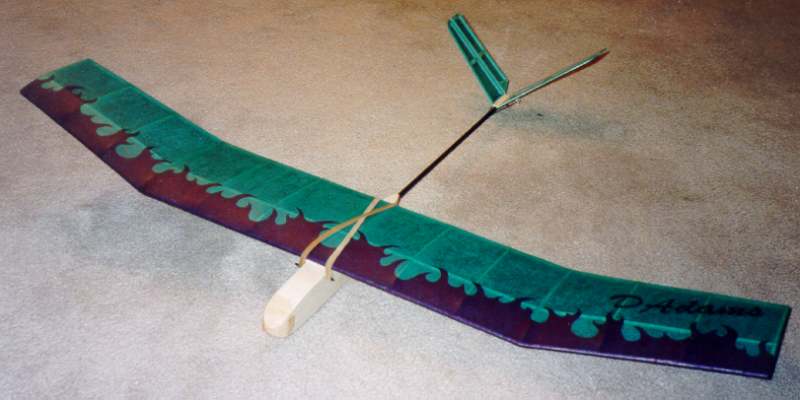

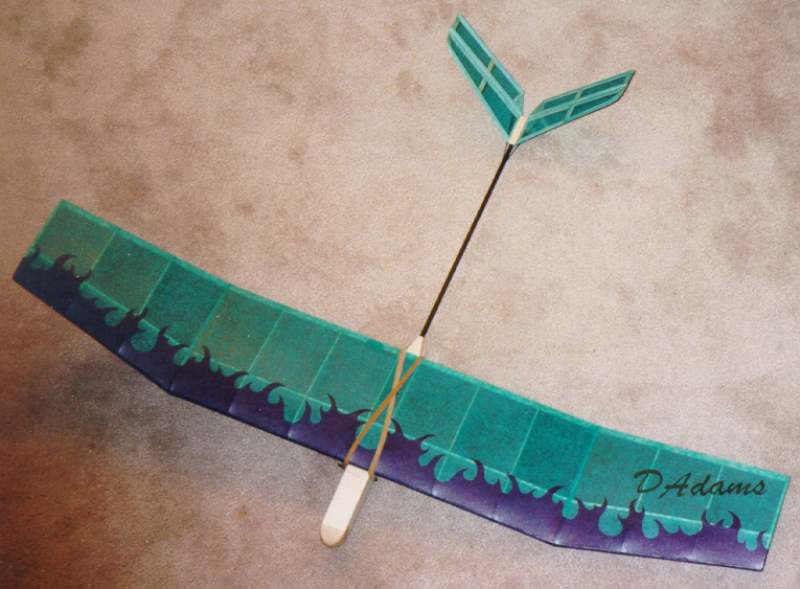

DAdams

Span: 30.5in Root Chord: 5.5 in Tip Chord: 4.0 in Wing Area: 160 sq.in Dihedral: ploy-hedral 11.5 deg Airfoil: Modified SD6060 Wing construction: All balsa built up 1/16" ribs, 2 @ 3/32" sq spar, 1/8" sq LE, 1/4"x1/16" TE Wing Covering: Tissue and dope Tail Area: ~10sq.in - each V tail	Fuselage Length: 23" Fuselage Type: Balsa pod (1/16" sheet), carbon fiber boom (tube) Fuselage weight (empty): 16.1g (0.57oz) Distance, LE wing to LE stab: 17.5" Weight Empty: 32.0g (1.13oz) Radio: FMA Micro 2000, 2@Cirrus CS-20BB, 4@110mAh SanyosWeight with CS21 or HS50's, Rx, Battery: 100.0g (3.5oz) Recommended Battery Size(weight): 4@110mAh 27.9g (0.98oz) Recommended Rx Size(type): FMA Fortress, Tetra or similar Number of servos(type): 2 Cirrus CS-20BB Availability: Most likely never, but I have some Visio files if someone wants to draw up plans so they can be posted (all I request is that I get a copy of the plans)
Matthew J Litke Suggested Price: Free, See Availability above for plan potential only mlitke@usa.net http://rcplanet.com/mattsmicroplanes/
