BoBo

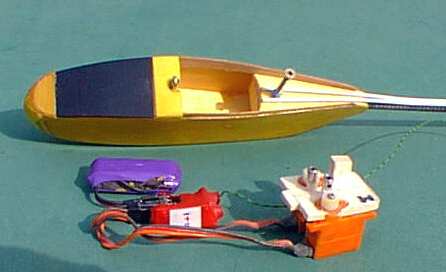

Dimensions: 1 mm (millimeter) = 0.039 inches, 1 g (gram)= 0.035 ounces, 1 sq. dm =15.5 sq. inches Span: 750 mm Root Chord: 160 mm Tip Chord: 100 mm Wing Area: 10.88 sq. dm Dihedral: Polyhedral 4-fold Airfoil: FF Chucky Sweepette Wing construction: Balsa geodetical Ribs Wing covering: 7 g Mylar Wing weight: 30 g Tail: V-tail Balsa 2 mm	Fuselage Length: 580 mm Fuselage Type: Pod: 0.6 mm ply, Boom: 6 mm carbon tube Fuselage weight: w/o equipment 42 g Distance,LE wing to LE stab: 440 mm Weight Empty: 72 g Radio: TX Hitec Flash 4 RX Czech REX 4 Ch FM caseless 8 g Servos: 2 PICO (various brands) 9 g each Battery: 4 x Sanyo 50 mAh, 15 g Weight airborne: 115 g
Price: kitting under investigation... Contact: Werner Stark, Austria, e-mail: wstark@ibm.net
Werner has been very kind to permit the listing of building instructions and plans for his designs KIS and BoBo. They are provided here as a self-extracting zip file, or as individual PDF files. We hope you find them useful. PDF files: Wing; Stab; Fuselage; Assembly; Building; Parts; Materials Zip File: KIS Zip File
